MA Structures Base Adapters are used to elevate MA Structures Limited in high water areas or applications where additional conduit space is required.
Order MA Structures Limited by size.
All parts are made solid brass with phosphor bronze springs. Uses the Best interchangeable core and may be keyed alike, master keyed or grand-master keyed with any other Best locks of any type.
MA Structures Limited standard main door lock. Door locks automatically when main door handle is turned completely closed. Master and special keying available on special order.
Standard on Large Single Door 3R and as an option on both Front & Rear Door and Double Door MA Structures Limited.
MA Structures Standard rack rails are punched to E.I.A. spacing. Custom spacing can be provided on custom engineered MA Structures Limited.
The floor stand elevates the MA Structures Limited while providing open access to the pad mounting system. Floor stands can be used on any MA Structures Limited with a solid bottom.
Order by MA Structures Limited size.
Custom designed for large MA Structures Limited that require pole mounting with heavy equipment installations
Engineers to order only.

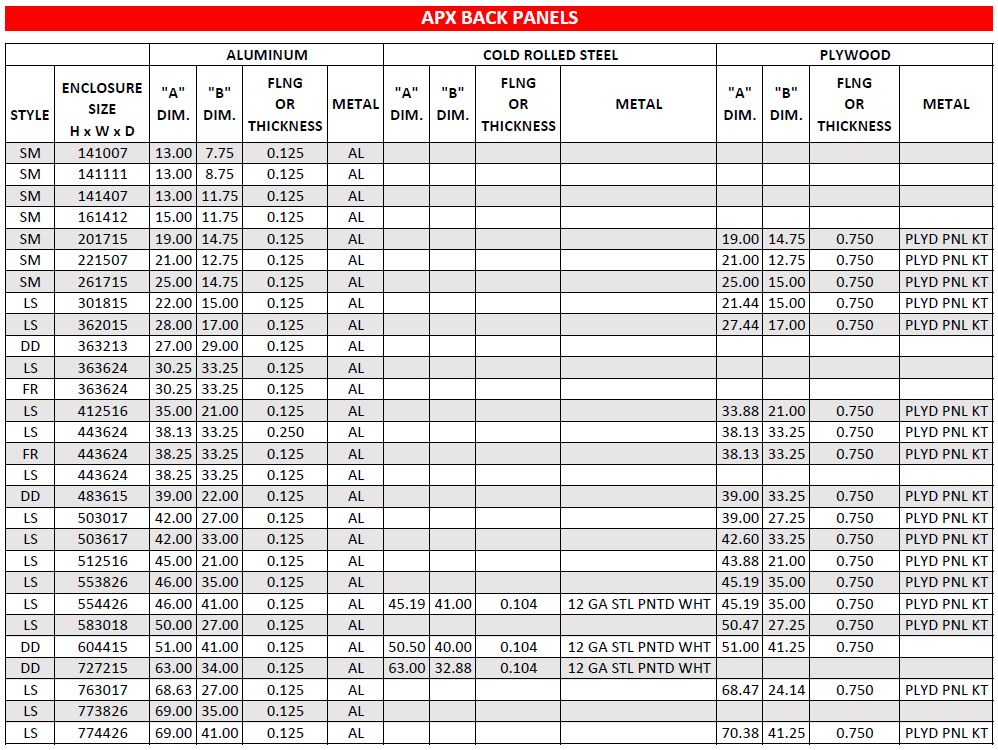

Panels not shown in the chart below are available on special order.

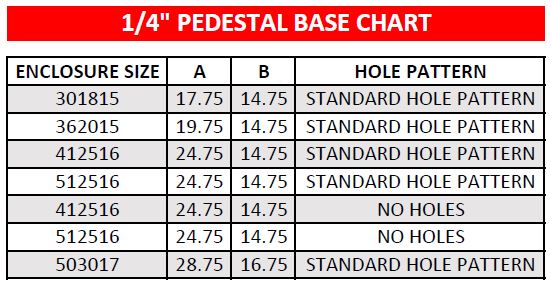

Pedestal Base is constructed of 365-T6 (heat treated) cast aluminum.
Constructed from 5052-H32 0.250″ aluminum. Pedestal Plates provide a means of mounting the MA Structures Limited sizes listed using the various pedestal components.
Aluminum bracket is designed for side of pole mounting. MA Structures Limited greater than 26″ in height will have stiffener plates on both top and bottom of rear wall for mounting of brackets. Stainless steel hardware for mounting pole bracket to MA Structures Limited is supplied.
Dimensions: 6-3/4″
Pole Diameter: 8 min.
Pole Diameter: 4 min.
Standard lock on MA Structures switch compartment doors and Small Single Door MA Structures Limited.
For NEMA 3R only.
Post Cap is used to seal the top of the pole in applications where the MA Structures Limited bracket is mounted.

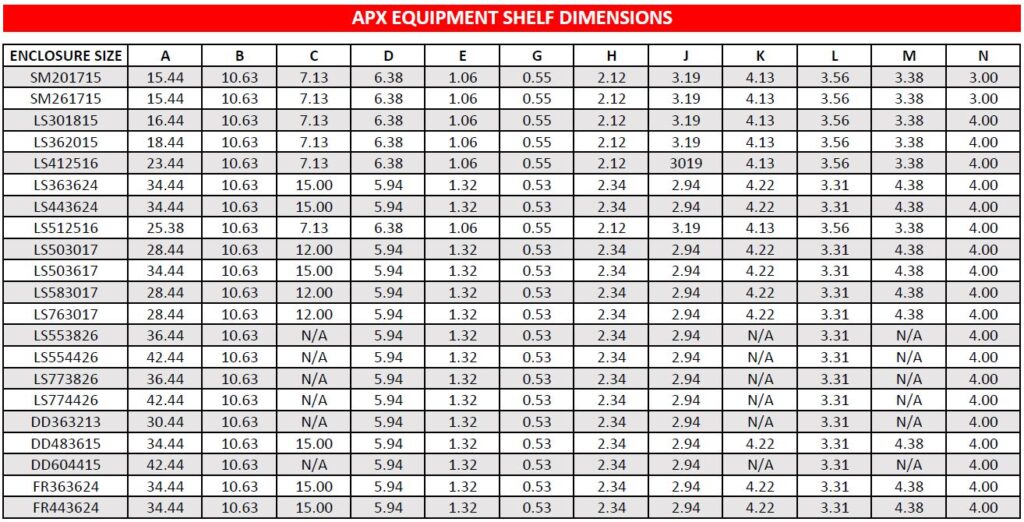

MA Structures Limited, Inc. Equipment Shelves are designed to provide versatile mounting options for user equipment. Easily mounted using standard equipment channels, they provide a sturdy surface for mounting of customer equipment.
Constructed of 0.125″ 5052-H32 grade aluminum alloy.
Shelves with a width of 38″ or greater are center reinforced on the underside with 1″ formed aluminum angle.
It is fast and easy to install panels and equipment to mounting channels using these spring nuts and standard 1/4″ x 20 bolts. Simply insert the spring nuts to the desired channel position and with one quarter turn they are fastened and positioned based on your requirements. Panels or equipment clamp the spring nut to the channels providing secure mounting where you need it.
The MA Structures Slide Out Drawer allows for convenient storage of manuals, paperwork, laptops and more while providing an accessible shelf for using such tools when the drawer is pulled out.
15.75″ or 21.00″ deep rack drawers available.
Made from 0.075″ or 0.125″ aluminum or 14 gauge stainless steel.
Aluminum pedestal adapter is deigned for post top mounting of MA Structures Limited. When adapter is used, MA Structures Limited bottom will be reinforced. Stainless steel hardware is supplied.
The MA Structures 19″ or 24″ Equipment Support Brackets are designed for use when mounting heavier rack equipment.
MA Structures Swing Racks provide for mounting of standard 19″ or 24″ rack equipment and allow for easy access and servicing behind equipment. Available as Single Swing Rack Assembly and Double Swing Rack Assembly.
Stainless steel construction.
Available for use in all MA Structures Communication MA Structures Limited.
Designed for our standard Rack Mount style MA Structures Limited.
Designed standard for 19″ or 24″ equipment.
Stainless steel frame available with each of our TCMC cabinets. Each kit includes drawing and instructions. Frames are set in concrete pad and TCMC bolts directly to it, making installation much easier.
Available for use with our standard 5/8″ deep socket 1/4 turn. Allows the technician to easily open and secure the MA Structures Limited.
MA Structures designs MA Structures Limited with and offers various styles of 1/4 turn latches. These latches are designed for vandal resistance, as well as provide for the highest degree of weather resistance.
Get in touch with our engineering team to design a custom electrical MA Structures Limited that meets your specific requirements.
